Shipping Container Heating and Cooling: BTU Sizing, Insulation, and HVAC Costs

A steel shipping container sitting in direct sun can reach 130°F or higher inside. In winter, the same container drops to within a few degrees of the outside temperature, and the cold steel walls pull moisture out of the air. That moisture condenses on every interior surface, dripping onto stored goods and creating what operators call “container rain.” Without climate control and insulation, a standard shipping container is a steel oven in summer and a condensation trap in winter.

The fix is straightforward, but the order matters: insulate first, then select the HVAC system sized for your container, insulation level, and climate zone. Getting that sequence wrong means oversized equipment, wasted energy, and monthly costs that never needed to be that high. Here is the practical breakdown for heating and cooling a 20-foot container or 40-foot container, including BTU sizing, system options, and what each approach actually costs.

Why Steel Containers Need Active Climate Control

Standard corrugated steel walls have a thermal U-value of roughly 0.5 to 1.0 BTU/hr/sq ft/°F. For comparison, a wood-framed wall with fiberglass insulation has a U-value around 0.05. That means an uninsulated container transfers heat 10 to 20 times faster than a standard building wall.

In practical terms, a container sitting in 95°F ambient temperature with direct sun exposure easily hits 130°F to 150°F inside. That is a heat gain of 35 to 55 degrees above ambient. Equipment fails, inventory degrades, and anyone working inside faces genuine heat stress within minutes.

The winter problem is different but equally damaging. When warm, humid air inside the container contacts cold steel walls, water vapor condenses. A single uninsulated 40-foot container can produce several gallons of condensation per day in humid climates. That moisture rusts the container from the inside, warps cardboard packaging, grows mold on textiles, and corrodes electronics. Shipping container condensation is the number one cause of stored-goods damage in uninsulated units.

Insulate First, Size HVAC Second

Running an air conditioner inside an uninsulated steel box is like cooling a car with the windows down. The system runs constantly, the electricity bill climbs, and interior temperatures barely hold. Insulation cuts the HVAC load by 40 to 60%, meaning you can install a smaller, cheaper system that cycles normally instead of running nonstop.

Closed-Cell Spray Foam: R-6 Per Inch

The top performer for shipping container insulation. Closed-cell spray foam delivers R-6 per inch, bonds directly to corrugated steel walls without framing, and acts as both insulation and vapor barrier. Two inches of closed-cell foam (R-12) on walls and ceiling drops the HVAC load dramatically while sealing every gap that would otherwise leak conditioned air.

Cost: $3,000 to $5,500 for a 20-foot container, $5,000 to $9,000 for a 40-foot container. The higher cost reflects professional application, but the air-sealing benefit makes it the best long-term value for occupied containers.

Rigid Foam Board: R-5 Per Inch

XPS or polyiso rigid boards offer R-5 per inch at a lower cost than spray foam. Boards require a framing system (steel studs or wood furring strips) to hold them against the walls, adding labor but giving you wall cavities for electrical runs. Two inches of rigid board gives R-10, which is sufficient for moderate climates.

Cost: $1,200 to $2,500 for a 20-foot container. A good option for containers for sale that you plan to build out yourself.

Radiant Barrier

Reflective foil barriers redirect up to 97% of radiant heat away from the interior. They carry no meaningful R-value, so they do not insulate against conductive heat transfer. Radiant barriers work best layered under a roof or over insulation, not as a standalone solution. Budget $200 to $600 for materials on a 20-foot container.

Mini-Split Systems: The Industry Standard for Container HVAC

Ductless mini-split systems have become the default heating and cooling choice for shipping containers. A mini-split consists of two components: a compressor/condenser unit mounted outside the container and an air handler mounted inside. Refrigerant lines connect the two through a small 3-inch hole in the wall.

Why Mini-Splits Dominate Container Applications

Both heating and cooling. Mini-splits with heat pump capability cool in summer and heat in winter, down to about 5°F ambient on most units. One system replaces a separate AC and heater.

No ductwork. Containers have limited interior height, typically 7’10“ to 8’6“ depending on the model (check container dimensions for specifics). Ductwork would eat 6 to 12 inches of headroom. Mini-splits mount on the wall and blow directly into the space.

High efficiency. Modern mini-splits operate at 18 to 25 SEER, compared to 10 to 14 SEER for window units. On a container running HVAC 10 hours a day in a hot climate, the electricity savings alone can offset the higher purchase price within 12 to 18 months.

Quiet operation. Indoor noise levels of 25 to 40 dB, compared to 50 to 60 dB for window units. That matters in offices, retail spaces, and any container where people work or customers visit.

Sizing a Mini-Split for Your Container

The baseline rule is 20 to 25 BTU per square foot for an insulated container, adjusted upward for sun exposure, climate extremes, and occupancy. Uninsulated containers in hot climates can need double that baseline.

A 20-foot container has roughly 160 square feet of floor area. Insulated with 2 inches of closed-cell foam in a moderate climate, a 9,000 to 12,000 BTU mini-split handles the load. Uninsulated in Phoenix or Houston, you need 18,000 to 24,000 BTU.

A 40-foot container has roughly 320 square feet. Insulated, a 12,000 to 18,000 BTU system covers it. Uninsulated in extreme heat, 24,000 BTU or a dual-zone system is required.

Mini-Split Cost Range

A 12,000 BTU single-zone mini-split costs $1,500 to $3,000 installed. An 18,000 BTU unit runs $2,000 to $3,500. A 24,000 BTU system, which covers an uninsulated 40-foot container, costs $2,500 to $4,500 installed. Installation includes the wall penetration, refrigerant line set, electrical connection, and mounting hardware.

For custom shipping containers that will serve as permanent workspaces, the mini-split is the right long-term investment.

Through-Wall and PTAC Units: 7,000-15,000 BTU

Packaged Terminal Air Conditioners, the same units you see in hotel rooms, work well for containers. A PTAC installs through a wall sleeve cut into the container side, keeping the entire unit contained in one housing. No separate outdoor compressor, no refrigerant lines to run.

PTAC units typically range from 7,000 to 15,000 BTU, with built-in electric heat strips for winter use. They cost $800 to $1,500 for the unit plus $300 to $600 for the wall sleeve installation. Total installed cost: $1,100 to $2,100.

PTACs make sense when you need a single self-contained unit with no exterior compressor to worry about. They are slightly less efficient than mini-splits (12 to 14 EER versus 18 to 25 SEER for mini-splits) and louder, but the simpler installation appeals to operators who want one box in, one hole cut, done.

Window AC Units: Budget Option at 500

Window air conditioners are the cheapest path to cooling a container. A 10,000 to 12,000 BTU window unit costs $150 to $500. Installation requires cutting a rectangular opening in the container wall or fitting the unit into an existing window frame on a modified container.

The limitations are real. Window units only cool; they do not heat. Efficiency ratings of 10 to 12 EER mean higher electricity costs over time. Noise levels of 50 to 60 dB make them impractical for office use. They also create a structural weak point in the container wall and are easier targets for theft on unsecured sites.

For seasonal cooling on a storage container rental where you do not want to invest in permanent HVAC, a window unit gets the job done cheaply.

Portable AC and Space Heaters: No-Modification Options

When you cannot cut into the container walls, portable equipment fills the gap. Portable AC units (8,000 to 14,000 BTU, $300 to $700) sit on the floor and vent through a hose routed out a door or vent opening. They sacrifice floor space and run less efficiently than permanently mounted systems, but they require zero modifications to the container.

For heating, 1,500-watt electric space heaters ($30 to $100) work in small containers during moderate cold. Forced-air or oil-filled radiator styles both function, though forced-air heaters distribute warmth faster. Keep portable heaters away from stored goods and on a dedicated 20-amp circuit to avoid tripping breakers.

Portable equipment works for short-term projects, seasonal temperature management, or containers where the lease prohibits structural modifications.

Add 10 to 20% for containers with high occupancy (4+ people), significant equipment heat loads, or direct all-day sun exposure on the long wall. Subtract 10% for shaded containers or those with insulated roofs and radiant barriers.

HVAC System Cost Comparison

The Pre-Built Shortcut: MMPS Elite Containers with HVAC Installed

Sizing insulation, selecting equipment, cutting wall openings, running electrical circuits, and scheduling installation takes weeks and costs $3,000 to $8,000+ before the container reaches a comfortable temperature. MMPS Elite office containers skip all of that.

Every Elite container ships with the climate control system already installed and tested:

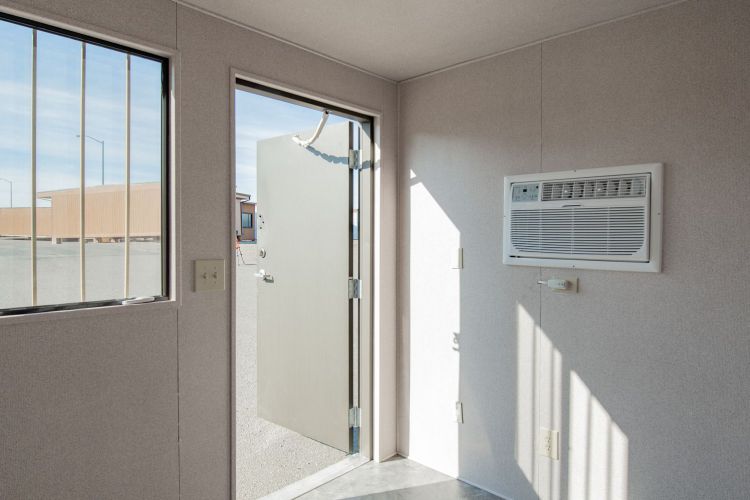

• 12,000 BTU air conditioning unit sized for occupied workspace use

• Wall-mounted heater for cold-weather operation

• 2-inch foam SIP walls with FRP skins providing both insulation and a finished interior surface

• 125-Amp electrical panel with capacity for HVAC, lighting, outlets, and data equipment

The SIP wall panels handle the insulation requirement. The 12K BTU AC handles climate control for a standard occupied container in most climate zones. The wall heater covers winter. You connect site power to the panel, and the space is ready.

Available in 10-foot, 20-foot, 24-foot, and 40-foot sizes. MMPS operates from 30+ locations across 27+ states with quote responses within 1 hour and 30-day billing cycles, which saves 8.3% compared to competitors billing on 28-day cycles.

Your container is cooking your inventory or freezing your crew, and every day without climate control is a day of lost productivity or damaged goods. MMPS Elite containers arrive with 12K BTU AC, wall heater, and insulated SIP walls already installed. No contractor scheduling, no wall cuts, no HVAC sizing guesswork. Call 225-398-8176 or request a quote and get a response within 1 hour, delivered from the closest of 30+ locations nationwide.
